How to work with Roles in ASP.NET Core Identity

How to work with Roles in ASP.NET Core Identity

In ASP.NET Core Identity we can create Roles that contain a set of permissions for performing a set of activities in the app. For example an organization can have 4 roles which are:

  • 1. Admin – For doing administration works like assigning work to employees.
  • 2. Manager – For looking after the clients need and completing projects on time.
  • 3. Network – For keeping the internet of the organization up and running in a secured manner.
  • 4. Security – For guarding the premises of the organization.
In my previous tutorial, I had explained How to do Authentication of Users in ASP.NET Core Identity. Now I will extend it with Identity Roles so make sure you read the previous tutorial also.

In ASP.NET Core Identity we can create any number of Roles and assign Identity users to these roles.

ASP.NET Core Identity RoleManager class

The ASP.NET Core Identity RoleManager class is used for accessing and managing roles. The generic version of the RoleManager<T> is used where ‘T’ is the class that represents roles in the Identity Database.

The Identity RoleManager class has some important functions and properties which are defined in the table given below.

Name Description
CreateAsync(role) Creates a new role
DeleteAsync(role) Deletes the specified role
FindByIdAsync(id) Find a role by its id
FindByNameAsync(name) Find a role by its name
RoleExistsAsync(name) Used to check if a role with the specified name exists or not
UpdateAsync(name) Updates a role
Roles This property returns all the roles in the Identity

To represent roles we will take the help of IdentityRole class of Microsoft.AspNetCore.Identity namespace. The important properties of this class are:

  • 1. Id – gives a unique identifier to the role.
  • 2. Name – defines the name of the role.
  • 3. Users – It returns a collection of IdentityUserRole objects that represents members in a given role.

Create and Delete Roles in Identity

We now will create the functionality to Create and Delete Roles in ASP.NET Core Identity. Start by creating a new Controller called RoleController.cs and add the following code to it:

using Microsoft.AspNetCore.Identity;
using Microsoft.AspNetCore.Mvc;

namespace Identity.Controllers
{
    public class RoleController : Controller
    {
        private RoleManager<IdentityRole> roleManager;
        public RoleController(RoleManager<IdentityRole> roleMgr)
        {
            roleManager = roleMgr;
        }

        public ViewResult Index() => View(roleManager.Roles);

        private void Errors(IdentityResult result)
        {
            foreach (IdentityError error in result.Errors)
                ModelState.AddModelError("", error.Description);
        }
    }
}

In the Role Controller class, we added a dependency of RoleManager class to the Constructor. The dependency injection technique provides us the RoleManager class object and then we can use it to manage Identity Roles.

private RoleManager<IdentityRole> roleManager;
public RoleController(RoleManager<IdentityRole> roleMgr)
{
    roleManager = roleMgr;
}

Get all Identity Roles

The Roles property of the RoleManager class provides all the Identity Roles. We are returning all the roles as a model to the Index View in the Index Action method of the Role Controller. See the below code.

public ViewResult Index() => View(roleManager.Roles);

Next, create the Index View file inside the Views ➤ Role folder. Add the following code to it:

@model IEnumerable<IdentityRole>
@{
    ViewData["Title"] = "ROLES";
}

<h1 class="bg-info text-white">All Roles</h1>
<a asp-action="Create" class="btn btn-secondary">Create a Role</a>

<table class="table table-sm table-bordered table-bordered">
    <tr><th>ID</th><th>Name</th><th>Users</th><th>Update</th><th>Delete</th></tr>
    @foreach (var role in Model)
    {
        <tr>
            <td>@role.Id</td>
            <td>@role.Name</td>
            <td i-role="@role.Id"></td>
            <td><a class="btn btn-sm btn-primary" asp-action="Update" asp-route-id="@role.Id">Update</a></td>
            <td>
                <form asp-action="Delete" asp-route-id="@role.Id" method="post">
                    <button type="submit" class="btn btn-sm btn-danger">
                        Delete
                    </button>
                </form>
            </td>
        </tr>
    }
</table>

This View takes a model of type IEnumerable<IdentityRole>. It will contains all the Identity Roles, we loop through all these roles using the foreach method and then show them inside a table.

Notice the i-role attribute on the 3rd td element:

<td i-role="@role.Id"></td>

This attribute will call a Custom Tag Helper which will modify this td element to display a list of all the Users who are members of each Role.

Next, create a folder on the root of the project and call it CustomTagHelpers. To this folder add a new class and call it RoleUsersTH.cs. This class will serve as a Custom TagHelper. The code of this RoleUserTH.cs is given below:

using Identity.Models;
using Microsoft.AspNetCore.Identity;
using Microsoft.AspNetCore.Razor.TagHelpers;

namespace Identity.CustomTagHelpers
{
    [HtmlTargetElement("td", Attributes = "i-role")]
    public class RoleUsersTH : TagHelper
    {
        private UserManager<AppUser> userManager;
        private RoleManager<IdentityRole> roleManager;

        public RoleUsersTH(UserManager<AppUser> usermgr, RoleManager<IdentityRole> rolemgr)
        {
            userManager = usermgr;
            roleManager = rolemgr;
        }

        [HtmlAttributeName("i-role")]
        public string Role { get; set; }

        public override async Task ProcessAsync(TagHelperContext context, TagHelperOutput output)
        {
            List<string> names = new List<string>();
            IdentityRole role = await roleManager.FindByIdAsync(Role);
            if (role != null)
            {
                foreach (var user in userManager.Users)
                {
                    if (user != null && await userManager.IsInRoleAsync(user, role.Name))
                        names.Add(user.UserName);
                }
            }
            output.Content.SetContent(names.Count == 0 ? "No Users" : string.Join(", ", names));
        }
    }
}

This Custom Tag Helper operates on the td elements having an i-role attribute. This attribute is used to receive the id of the role that is being processed. The RoleManager and UserManager objects fetches a list of all the users that resides in a given role.

We need to update the View Imports file (_ViewImports.cshtml) to import:

  • 1. Microsoft.AspNetCore.Identity namespace on the views.
  • 2. The custom tag helper called RoleUsersTH.cs in the views.

The updated code of the _ViewImports.cshtml file is given below:

@using Identity.Models
@using Microsoft.AspNetCore.Identity
@addTagHelper Identity.CustomTagHelpers.*, Identity
@addTagHelper *, Microsoft.AspNetCore.Mvc.TagHelpers

ASP.NET Core Identity Create Role

We use CreateAsync method of the RoleManager class to create a new Identity Role. Our Create Action method will do this work for us. In the below code of the Role Controller, we have highlighted the create action method code.

using Microsoft.AspNetCore.Identity;
using Microsoft.AspNetCore.Mvc;
using System.ComponentModel.DataAnnotations;

namespace Identity.Controllers
{
    public class RoleController : Controller
    {
        private RoleManager<IdentityRole> roleManager;
        public RoleController(RoleManager<IdentityRole> roleMgr)
        {
            roleManager = roleMgr;
        }

        public ViewResult Index() => View(roleManager.Roles);

        private void Errors(IdentityResult result)
        {
            foreach (IdentityError error in result.Errors)
                ModelState.AddModelError("", error.Description);
        }

        public IActionResult Create() => View();

        [HttpPost]
        public async Task<IActionResult> Create([Required] string name)
        {
            if (ModelState.IsValid)
            {
                IdentityResult result = await roleManager.CreateAsync(new IdentityRole(name));
                if (result.Succeeded)
                    return RedirectToAction("Index");
                else
                    Errors(result);
            }
            return View(name);
        }
    }
}

The Create Action takes the Role name as a string in it’s parameter and uses the CreateAsync() method to create the Identity Role.

IdentityResult result = await roleManager.CreateAsync(new IdentityRole(name));

We will also need to add the Create View inside the Views ➤ Role folder having the code as given below.

@model string
@{
    ViewData["Title"] = "CREATE ROLE";
}

<h1 class="bg-info text-white">Create a Role</h1>
<a asp-action="Index" class="btn btn-secondary">Back</a>
<div asp-validation-summary="All" class="text-danger"></div>

<form asp-action="Create" method="post">
    <div class="form-group">
        <label for="name">Name:</label>
        <input name="name" class="form-control" />
    </div>
    <button type="submit" class="btn btn-primary">Create</button>
</form>

ASP.NET Core Identity Delete Role

We use the DeleteAsync() method of the RoleManager class for deleting Identity Roles. The Delete Role feature is provided by the Delete Action method which takes the Role id (of the role that needs to be deleted) in it’s parameter. The Code of this action method is given below:

[HttpPost]
public async Task<IActionResult> Delete(string id)
{
    IdentityRole role = await roleManager.FindByIdAsync(id);
    if (role != null)
    {
        IdentityResult result = await roleManager.DeleteAsync(role);
        if (result.Succeeded)
            return RedirectToAction("Index");
        else
            Errors(result);
    }
    else
        ModelState.AddModelError("", "No role found");
    return View("Index", roleManager.Roles);
}
Testing Identity Create & Delete Roles Functionality

Run the project and go to the create role URL – https://localhost:7263/Role/Create. Once we create a role, we will be redirected the Index View which will show all the Roles in the Identity Database.

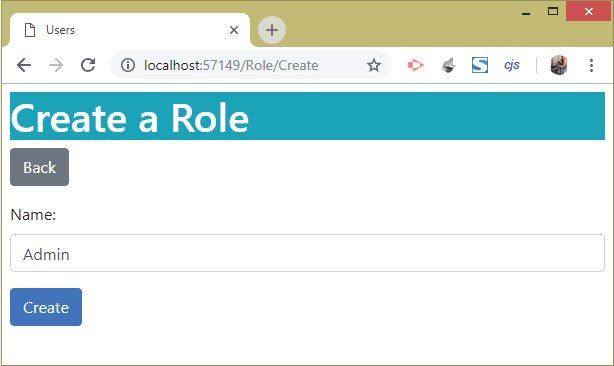

The create role page is shown below:

ASP.NET Core Identity Create Role

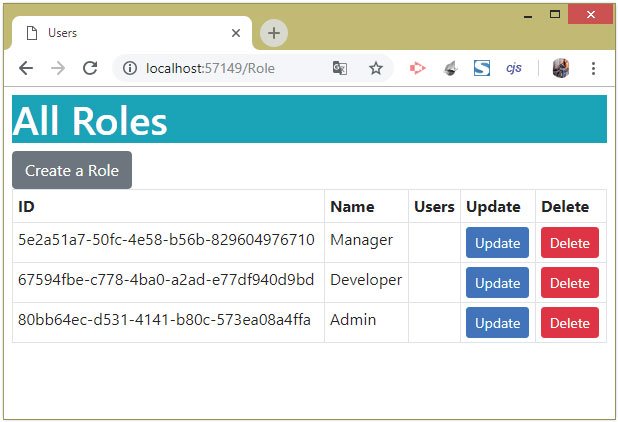

The Index View has a delete button through which an Identity Role can be deleted from the database. Check the below image:

Cross Origin Resource Sharing (CORS) is a browser restriction applied to JavaScript & jQuery. I have written an article to deal with them, check it here – How to Enable Cross-Origin Requests (CORS) in ASP.NET Core

ASP.NET Core Identity Delete Role

Add Remove Users to Identity Roles

Now we will create a Identity Update Role functionality which will do 2 things:

  1. Add User to Role
  2. Remove User from Role

For implementing this functionality first add 2 classes called RoleEdit.cs and RoleModification.cs inside the Models folder. The codes of these classes are given below.

The RoleEdit.cs code:

using Microsoft.AspNetCore.Identity;

namespace Identity.Models
{
    public class RoleEdit
    {
        public IdentityRole Role { get; set; }
        public IEnumerable<AppUser> Members { get; set; }
        public IEnumerable<AppUser> NonMembers { get; set; }
    }
}

The RoleEdit class is used to represent the Role and the details of the Users who are in the role.

The RoleModification.cs code:

using System.ComponentModel.DataAnnotations;

namespace Identity.Models
{
    public class RoleModification
    {
        [Required]
        public string RoleName { get; set; }

        public string RoleId { get; set; }

        public string[]? AddIds { get; set; }

        public string[]? DeleteIds { get; set; }
    }
}

The RoleModification class code will help in doing the changes to a role.

We will now use these 2 classes to add and remove users from an Identity Role. For this we will add an Update action to the Role Controller.

The updated code of the RoleController.cs containing the Update Action is shown below in highlighted manner:

using Microsoft.AspNetCore.Identity;
using Microsoft.AspNetCore.Mvc;
using System.ComponentModel.DataAnnotations;
using Identity.Models;

namespace Identity.Controllers
{
    public class RoleController : Controller
    {
        private RoleManager<IdentityRole> roleManager;
        private UserManager<AppUser> userManager;

        public RoleController(RoleManager<IdentityRole> roleMgr, UserManager<AppUser> userMrg)
        {
            roleManager = roleMgr;
            userManager = userMrg;
        }

        // other methods

        public async Task<IActionResult> Update(string id)
        {
            IdentityRole role = await roleManager.FindByIdAsync(id);
            List<AppUser> members = new List<AppUser>();
            List<AppUser> nonMembers = new List<AppUser>();
            foreach (AppUser user in userManager.Users)
            {
                var list = await userManager.IsInRoleAsync(user, role.Name) ? members : nonMembers;
                list.Add(user);
            }
            return View(new RoleEdit
            {
                Role = role,
                Members = members,
                NonMembers = nonMembers
            });
        }

        [HttpPost]
        public async Task<IActionResult> Update(RoleModification model)
        {
            IdentityResult result;
            if (ModelState.IsValid)
            {
                foreach (string userId in model.AddIds ?? new string[] { })
                {
                    AppUser user = await userManager.FindByIdAsync(userId);
                    if (user != null)
                    {
                        result = await userManager.AddToRoleAsync(user, model.RoleName);
                        if (!result.Succeeded)
                            Errors(result);
                    }
                }
                foreach (string userId in model.DeleteIds ?? new string[] { })
                {
                    AppUser user = await userManager.FindByIdAsync(userId);
                    if (user != null)
                    {
                        result = await userManager.RemoveFromRoleAsync(user, model.RoleName);
                        if (!result.Succeeded)
                            Errors(result);
                    }
                }
            }

            if (ModelState.IsValid)
                return RedirectToAction(nameof(Index));
            else
                return await Update(model.RoleId);
        }
    }
}

Notice we have added a dependency of UserManager class on the controller’s constructor.

JWT token system provides highest quality security to your APIs. Want to read it more – ASP.NET Core JWT Authentication and Authorization of Web API [Detailed]

The HTTP GET version of the Update Action method is used to fetch members and non-members of a selected Identity Role. While the HTTP POST version of the Update Action method is used for adding or removing users from an Identity Role.

We have used the following members of the UserManager class to manage the ASP.NET Core Identity Roles:

Name Description
AddToRoleAsync(AppUser user, string name) Adds a user to an Identity Role.
RemoveFromRoleAsync(AppUser user, string name) Removes a user from an Identity Role.
GetRolesAsync(AppUser user) Gives all the Identity Roles in which a given user is a member.
IsInRoleAsync(AppUser user, string name) Returns true if the user is a member of a specified role else returns false.

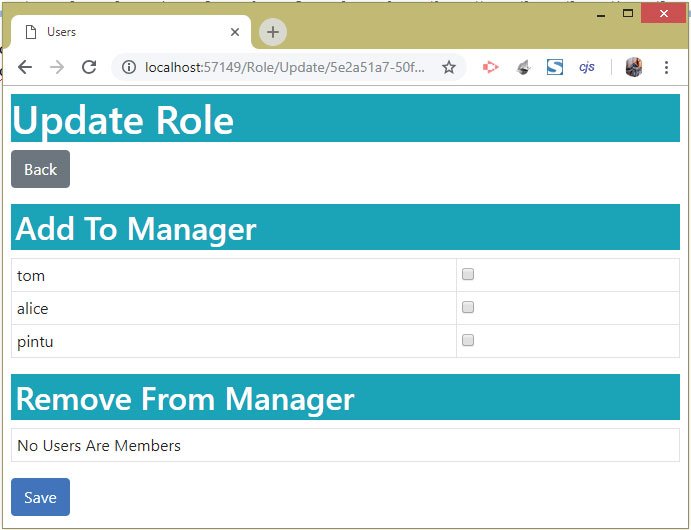

Next, add an Update View inside the Views ➤ Role folder with the following code:

@model RoleEdit
@{
    ViewData["Title"] = "UPDATE ROLE";
}

<h1 class="bg-info text-white">Update Role</h1>
<a asp-action="Index" class="btn btn-secondary">Back</a>
<div asp-validation-summary="All" class="text-danger"></div>

<form method="post">
    <input type="hidden" name="roleName" value="@Model.Role.Name" />
    <input type="hidden" name="roleId" value="@Model.Role.Id" />

    <h2 class="bg-info p-1 text-white">Add To @Model.Role.Name</h2>
    <table class="table table-bordered table-sm">
        @if (Model.NonMembers.Count() == 0)
        {
            <tr><td colspan="2">All Users Are Members</td></tr>
        }
        else
        {
            @foreach (AppUser user in Model.NonMembers)
            {
                <tr>
                    <td>@user.UserName</td>
                    <td>
                        <input type="checkbox" name="AddIds" value="@user.Id">
                    </td>
                </tr>
            }
        }
    </table>

    <h2 class="bg-info p-1 text-white">Remove From @Model.Role.Name</h2>
    <table class="table table-bordered table-sm">
        @if (Model.Members.Count() == 0)
        {
            <tr><td colspan="2">No Users Are Members</td></tr>
        }
        else
        {
            @foreach (AppUser user in Model.Members)
            {
                <tr>
                    <td>@user.UserName</td>
                    <td>
                        <input type="checkbox" name="DeleteIds" value="@user.Id">
                    </td>
                </tr>
            }
        }
    </table>
    <button type="submit" class="btn btn-primary">Save</button>
</form>

The View has 2 HTML tables:

  • For showing users who are non-members of a selected role.
  • For showing users who are members of a selected role.

A checkbox is given against each user’s name, and through this checkbox users can be added or removed to a selected role.

Testing Update Role Feature

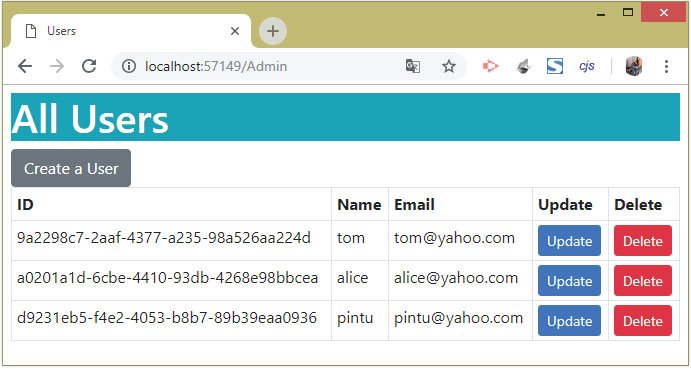

Make sure there are 3 Users registered in Identity. If not, then go to the URL – https://localhost:7263/Admin/Create and create the following users:

1. Name – tom, Email[email protected], Password – Coder77@1
2. Name – alice, Email[email protected], Password – Coder77@1
3. Name – pintu, Email[email protected], Password – Coder77@1

See the below image:

create users in identity

To test the Update Identity Role Feature, first make sure there are 3 roles created from the URL – https://localhost:7263/Role/Create.

These roles are:

1. Manager
2. Developer
3. Admin

Notice the Users column shows No Users for each of the Roles, as shown in the image below:

ASP.NET Core Identity Create Roles example

Now click the Update button against the Manager role which takes to the Update View where we will see 3 users (tom, alice, pintu) under the Add To Manager heading, see below image:

ASP.NET Core Identity Update Role

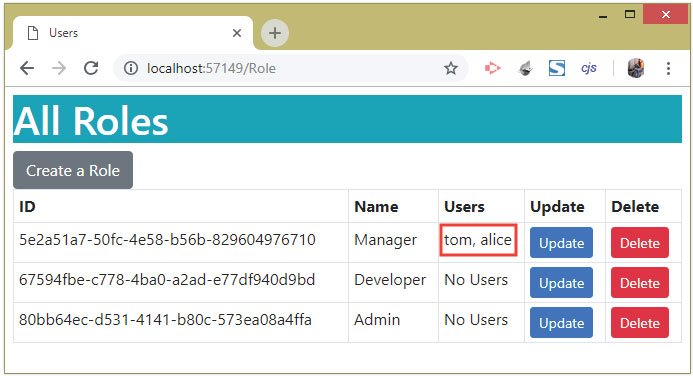

Next, check the tom and alice checkboxes and click the save button. This will add these 2 users to the Manager role, as shown by the given image:

adding asp.net core identity users to a role

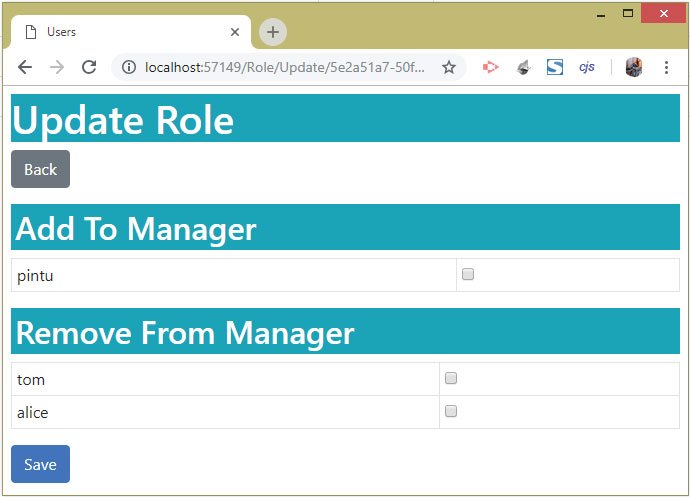

Next, click the Update button of the Manager’s role once more. We will now see user called pintu shown inside the heading called Add To Manager, and tom & alice shown inside another heading called Remove From Manager.

Check the below image:

asp.net core identity remove user from role

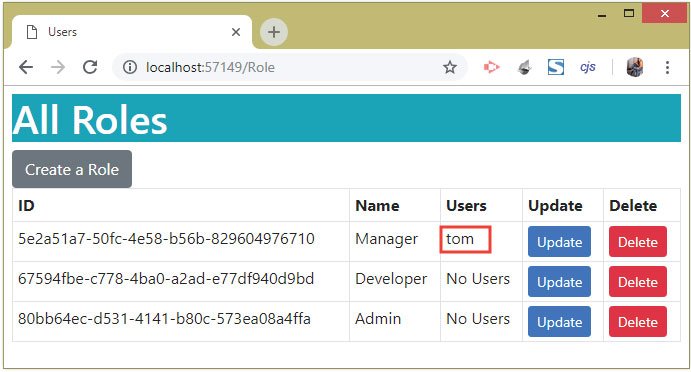

Click the checkbox for alice and then click the save button. This will remove alice from Manger’s role. Check the below image:

removing users from identity role

Note that a user can also be added to Multiple Roles. With this we just completed the ASP.NET Core Identity Update Role feature. Next we will see how to perform role based authentication.

ASP.NET Core Identity Role based Authentication

ASP.NET Core Identity Role based Authentication ensures that only users in a specific roles are allowed to access a given resource. For example – we can include the [Authorize(Roles = “SomeRole”)] attributes on an action method to specify that all Users in the “SomeRole” can only access this action method.

When we add the Authorize attribute – [Authorize(Roles = "Manager")] to the Index action of the Home Controller. Then it specifies that only Manager Role Users can access the Index Action method of the Home Controller. The code is given below:

public class HomeController : Controller
{
    [Authorize(Roles = "Manager")]
    public IActionResult Index()
    {
        return View((object)"Hello");
    }
}

Run the application and login with user’s tom credentials. Now access the Home controller’s Index action method (url – https://localhost:7263/). Everything will work fine since user tom belongs to the Manager role.

Now log-in with user alice credentials. Since alice does not belongs to Manager’s role then on opening the URL of the Index Action of the Home Controller, which is Home/Index, we will be redirected to access denied page whose URL is https://localhost:7263/Account/AccessDenied?ReturnUrl=%2F.

Since we have not yet created the AccessDenied action on the Account controller therefore you will get HTTP ERROR 404 error. So create the action called AccessDenied in the Account Controller as shown by the below code:

using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Identity;
using Identity.Models;
using System.Threading.Tasks;

namespace Identity.Controllers
{
    [Authorize]
    public class AccountController : Controller
    {
        //...

        public IActionResult AccessDenied()
        {
            return View();
        }
    }
}

Also adds the AccessDenied.cshtml view file inside the Views ➤ Account folder, and add the below shown code to it.

<h2 class="bg-danger mb-1 p-2 text-white">Access Denied</h2>
<a asp-controller="Account" asp-action="Logout" class="btn btn-primary">OK</a>

Now re-run your application and go to the login URL – https://localhost:7263/Account/Login. Log in with user alice credentials:

1. Email – [email protected]
2. Password – Coder77@1

After login you we be redirected to the Access Denied URL, as shown in the below image:

asp.net core identity role based authentication

The /Account/AccessDenied URL is the default URL set by Identity which can be changed by setting the AccessDeniedPath configuration property in the ConfigureServices method of Startup.cs class in case of DOT NET 5 or previous versions.

services.ConfigureApplicationCookie(opts =>
{
    opts.AccessDeniedPath = "/Stop/Index";
});

For DOT NET 6.0 and later version we add the below code to the program class.

builder.Services.ConfigureApplicationCookie(opts =>
{
    opts.AccessDeniedPath = "/Stop/Index";
});

Remember: If we change the roles for the user who is currently authenticated in the app then the changes won’t take effect until we peform log out and re-login for the user.

Download the full source codes of this tutorial from the below link:

Download

Conclusion

This completes the tutorial on ASP.NET Core Identity Roles and now we are in a position to upgrade any of the app to include Identity Roles and authentication feature.

SHARE THIS ARTICLE

  • linkedin
  • reddit
yogihosting

ABOUT THE AUTHOR

I hope you enjoyed reading this tutorial. If it helped you then consider buying a cup of coffee for me. This will help me in writing more such good tutorials for the readers. Thank you. Buy Me A Coffee donate
